UltraMax Gear Drives

The UltraMax Drive combines the high performance of parallel shaft gear drives with the cost efficiency of gear motors. It’s built to handle the demands of medium—and heavy-duty concentric gear drive applications, offering exceptional design, durability, and efficiency. With UltraMax, you get more power for your investment—up to 30% savings compared to a similarly rated parallel shaft gear drive. Ideal for high-torque applications, the UltraMax provides a robust, compact, and long-lasting solution with a fully-featured concentric design suited for global markets.

Features & Benefits:

• Sizes: 10 available options
• Gear Ratios: Reductions from 1.5:1 to 985:1
• Motor Mounting Options: Scoop, flange, or baseplate
• Gearing: Helical design reduces noise and vibration
• Ratio Options: Low ratios available for high-speed applications
• Durability: Heavy-duty bearing and seal protection
• Reliability: Optional reliability packages

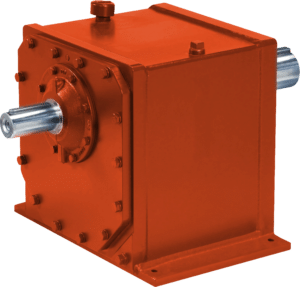

Concentric Inline UltraMax

2040 Gear Drives

Ultramax Size 2040 Gear Drive:

• Ratio Range: 1.5 – 158.9
• Torque Range: 3,040 – 14,400 inch-pounds
• Mounting Options: Foot-mounted with horizontal low-speed shaft
• Standard Motor Mounting Options:
  • Top motor mounts
  • Scoop mounts
  • Flanged motor mounts

2050 Gear Drives

Ultramax Size 2050 Gear Drive:

• Ratio Range: 1.5 – 985.3
• Torque Range: 5,740 – 25,700 inch-pounds
• Mounting Options: Foot-mounted with horizontal low-speed shaft
• Standard Motor Mounting Options:
  • Top motor mounts
  • Scoop mounts
  • Flanged motor mounts

2060 Gear Drives

Ultramax Size 2060 Gear Drive:

• Ratio Range: 1.5 – 985.3
• Torque Range: 10,600 – 45,400 inch-pounds
• Mounting Options: Foot-mounted with horizontal low-speed shaft
• Standard Motor Mounting Options:
  • Top motor mounts
  • Scoop mounts
  • Flanged motor mounts

2070 Gear Drives

Ultramax Size 2070 Gear Drive:

• Ratio Range: 1.84 – 985.3
• Torque Range: 18,100 – 64,900 inch-pounds
• Mounting Options: Foot-mounted with horizontal low-speed shaft
• Standard Motor Mounting Options:
  • Top motor mounts
  • Scoop mounts
  • Flanged motor mounts

2080 Gear Drives

Ultramax Size 2080 Gear Drive:

• Ratio Range: 1.5 – 985.3
• Torque Range: 22,300 – 95,200 inch-pounds
• Mounting Options: Foot-mounted with horizontal low-speed shaft
• Standard Motor Mounting Options:
  • Top motor mounts
  • Scoop mounts
  • Flanged motor mounts

2090 Gear Drives

Ultramax Size 2090 Gear Drive:

• Ratio Range: 1.5 – 985.3
• Torque Range: 32,400 – 151,000 inch-pounds
• Mounting Options: Foot-mounted with horizontal low-speed shaft
• Standard Motor Mounting Options:
  • Top motor mounts
  • Scoop mounts
  • Flanged motor mounts

2100 Gear Drives

Ultramax Size 2100 Gear Drive:

• Ratio Range: 5.06 – 985.3
• Torque Range: 139,000 – 212,000 inch-pounds
• Mounting Options: Foot-mounted with horizontal low-speed shaft
• Standard Motor Mounting Options:
  • Top motor mounts
  • Scoop mounts
  • Flanged motor mounts

2110 Gear Drives

Ultramax Size 2110 Gear Drive:

• Ratio Range: 9.3 – 985.3
• Torque Range: 256,000 – 316,000 inch-pounds
• Mounting Options: Foot-mounted with horizontal low-speed shaft
• Standard Motor Mounting Options:
  • Top motor mounts
  • Scoop mounts
  • Flanged motor mounts

2120 Gear Drives

Ultramax Size 2120 Gear Drive:

• Ratio Range: 11.39 – 985.3
• Torque Range: 361,000 – 419,000 inch-pounds
• Mounting Options: Foot-mounted with horizontal low-speed shaft
• Standard Motor Mounting Options:
  • Top motor mounts
  • Scoop mounts
  • Flanged motor mounts

2130 Gear Drives

Ultramax Size 2130 Gear Drive:

• Ratio Range: 11.39 – 985.3
• Torque Range: 448,000 – 601,000 inch-pounds
• Mounting Options: Foot-mounted with horizontal low-speed shaft
• Standard Motor Mounting Options:
  • Top motor mounts
  • Scoop mounts
  • Flanged motor mounts
