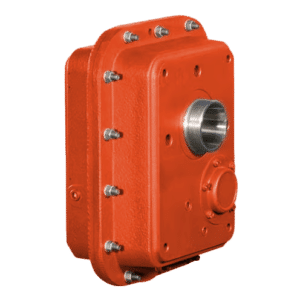

Shaft Mount Gear Drives

Home » Projects » Shaft Mount Gear Drives

Our gear drives are built to handle the toughest operating conditions and have proven their reliability in the most demanding applications worldwide.

Key Features & Benefits:

Robust Design: Engineered to minimize stress and wear, extending service life.
Size Options: Available in 11 sizes, from 5107 to 5608, with flange or shaft mounting options.
Mounting Flexibility: Suitable for both horizontal and vertical mounting.
Torque Assist (TA) Taper Bushing: Ensures lifetime removal ease.
Additional Options: Includes the optional Falk Reliability Package and a full line of accessories.
Load Capacity: Provides large overhung and thrust load capacities.
Warranty: Comes with a 3-year, heavy-duty warranty.
Helical Design: Features high hardness, surface-finished teeth, and a wider face for enhanced performance.

Shaft Mount Gear Drives are application-engineered to deliver reliable, long-lasting performance in challenging environments.

Product

A shaft mount gear drive is a type of gear mechanism designed to be directly mounted onto a rotating shaft. This allows for efficient power transmission between the shaft and the driven equipment. This configuration is typically used to transfer power between shafts aligned in the same direction without additional mounting brackets or bases.

Advantages:

Space Efficiency: Eliminates the need for additional mounting components, allowing for a more compact and streamlined design.
Ease of Installation: Simplifies the installation process by mounting directly onto the shaft, reducing the need for complex alignment.
Durability: Designed to handle high loads and harsh conditions, making it suitable for heavy-duty industrial applications.
Maintenance: Often features designs that facilitate easier maintenance and replacement of components.

Typical Applications:

Conveyor Systems: Used to drive conveyor belts where space and alignment are critical.
Industrial Machinery: Common in various types of machinery that require direct shaft mounting.
Material Handling: Suitable for equipment that needs to handle heavy loads with minimal space.

Built for continuous rough-duty, these are the easiest and quickest shaft-mounted drives to install and remove.
