Planetgear Gear Drives

Planetgear Concentric Inline Gear Drives are designed to tackle tough challenges and excel in the most demanding applications. Key features include:

• Rugged Design: Built to withstand harsh operating conditions and proven in challenging environments.
• Self-Aligning Planet Carriers: They floate radially and axially to ensure perfect alignment of the drive train and reliable operation.
• Advanced Materials: Made with state-of-the-art materials and processes for hardened, wear-resistant gearing.
• Heavy-Duty Capability: Handles heavy loads and shock impacts with ease.
• Warranty: Backed by a 3-year heavy-duty warranty for added peace of mind.

Features & Benefits:

• 19 sizes
• Handles high shock loads, 250% overload
• Internal backstop for easy field installation
• Solid or hollow output for shaft-mounted configurations
• Taconite-duty seals provide optimal performance and long seal life
• Horizontal, vertical, or tilt mounting is available for foot-mounted configurations
• ALL Planetgear gear reducers are backed by a 3-year, heavy-duty warranty.

Concentric Inline Planetgear

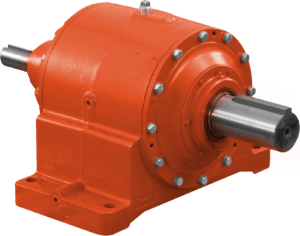

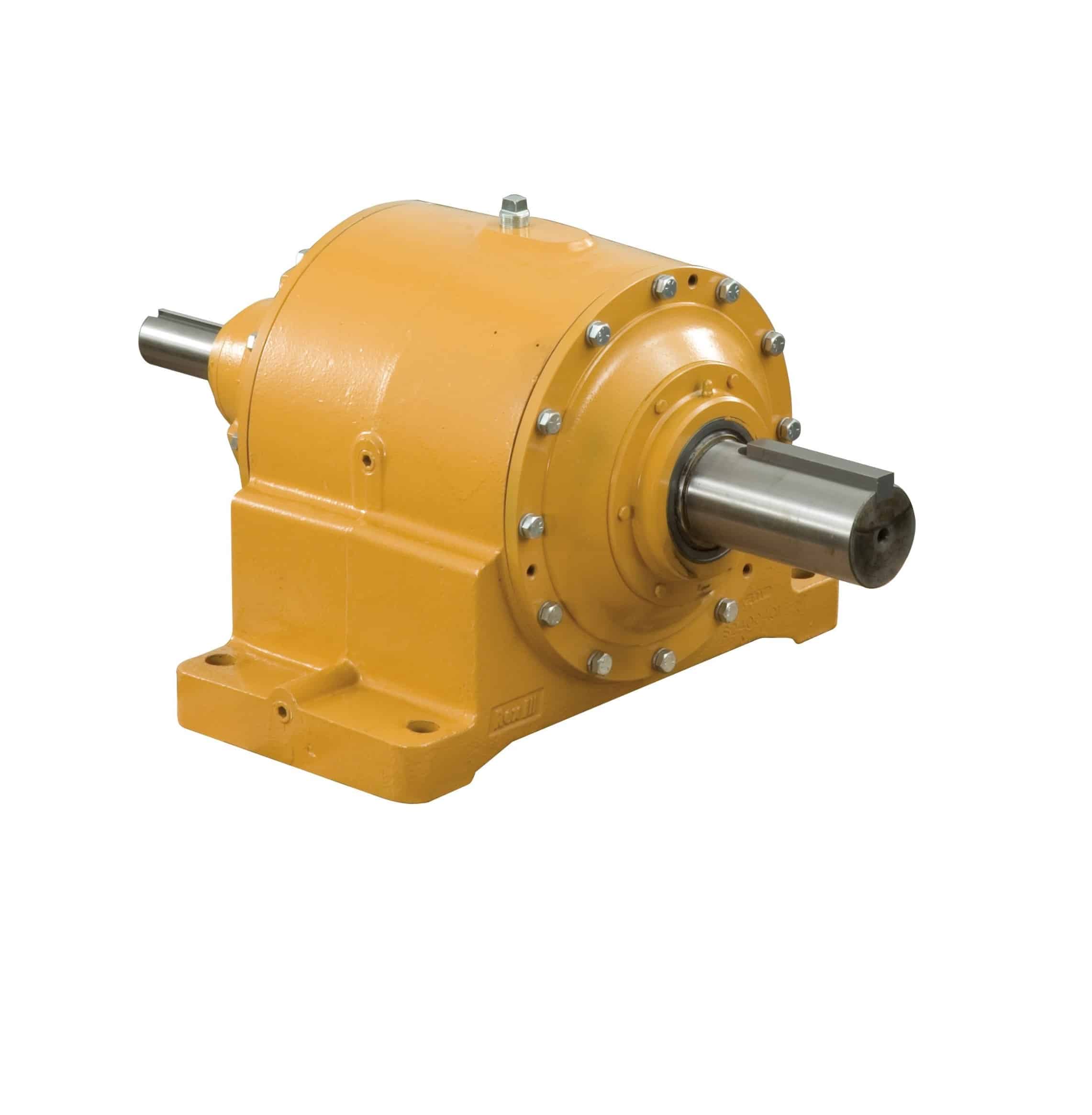

Atlas Gear Drives

 The Planetgear 7000 Series Atlas Drive offers:

• Ratio Range: 4.39 – 1255
• Torque Range: 43,000 – 26,000 inch-pounds
• Mounting Options: Foot-mounted, suitable for both horizontal and vertical orientations
• Standard Accessories:
  • Flanged motor mounts
  • Slide bases
  • Top motor mounts
  • Internal backstops
  • Shaft fans

Delta Gear Drives

 The Planetgear 7000 Series Delta Size Drive offers:

• Ratio Range: 11.02 – 1785
• Torque Range: 154,000 – 121,000 inch-pounds
• Mounting Options: Foot-mounted, suitable for both horizontal and vertical orientations
• Standard Accessories:
  • Flanged motor mounts
  • Slidebases
  • Top motor mounts
  • Internal backstops
  • Shaft fans

Earth Gear Drives

Planetgear 7000 Series Earth Size Drive Offers:

• Ratio Range: 3.53 – 1785
• Torque Range: 76,000 – 42,000 inch-pounds
• Mounting Options: Foot-mounted, suitable for both horizontal and vertical orientations
• Standard Accessories:
  • Flanged motor mounts
  • Slidebases
  • Top motor mounts
  • Internal backstops
  • Shaft fans

Gemini Gear Drives

Planetgear SMP Series Gemini Size Drive offers:

• Ratio Range: 11.02 – 1785
• Torque Range: 1,759,000 – 798,000 inch-pounds
• Mounting Options: Shaft-mounted with hollow low-speed shaft and shrink disk; suitable for both horizontal and vertical orientations
• Standard Motor Mounting Options:
  • Motor flanges
  • Top motor mounts
  • Motor scoops

Hercules Gear Drives

Planetgear SMP Series Hercules Size Drive offers:

• Ratio Range: 43.78 – 1785
• Torque Range: 2,999,000 – 1,779,000 inch-pounds
• Mounting Options: Shaft-mounted with hollow low-speed shaft and shrink disk; suitable for both horizontal and vertical orientations
• Standard Motor Mounting Options:
  • Motor flanges
  • Top motor mounts
  • Motor scoops

Jupiter Gear Drives

Planetgear SMP Series Jupiter Size Drive offers:

• Ratio Range: 13.85 – 1785
• Torque Range: 830,000 – 477,000 inch-pounds
• Mounting Options: Shaft-mounted with hollow low-speed shaft and shrink disk; suitable for both horizontal and vertical orientations
• Standard Motor Mounting Options:
  • Motor flanges
  • Top motor mounts
  • Motor scoops

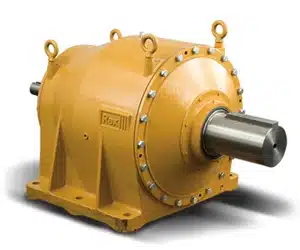

 Jupiter Plus Gear Drives

Planetgear 7000 Series Jupiter Plus Size Drive offers:

• Ratio Range: 13.85 – 1785
• Torque Range: 905,000 – 522,000 inch-pounds
• Mounting Options: Foot-mounted, suitable for both horizontal and vertical orientations
• Standard Accessories:
  • Flanged motor mounts
  • Slidebases
  • Top motor mounts
  • Internal backstops
  • Shaft fans

Luna Gear Drives

Planetgear 7000 Series Luna Size Drive offers:

• Ratio Range: 4.39 – 1255
• Torque Range: 51,000 – 37,000 inch-pounds
• Mounting Options: Foot-mounted, suitable for both horizontal and vertical orientations
• Standard Accessories:
  • Flanged motor mounts
  • Slidebases
  • Top motor mounts
  • Internal backstops
  • Shaft fans

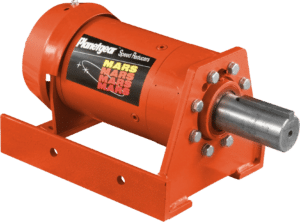

Mars Gear Drives

Planetgear 7000 Series Mars Size Drive offers:

• Ratio Range: 3.53 – 1785
• Torque Range: 18,000 – 7,000 inch-pounds
• Mounting Options: Foot-mounted, suitable for both horizontal and vertical orientations
• Standard Accessories:
  • Flanged motor mounts
  • Slidebases
  • Top motor mounts
  • Internal backstops
  • Shaft fans

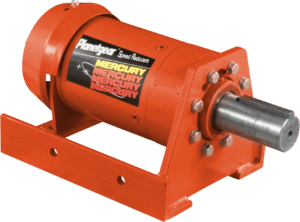

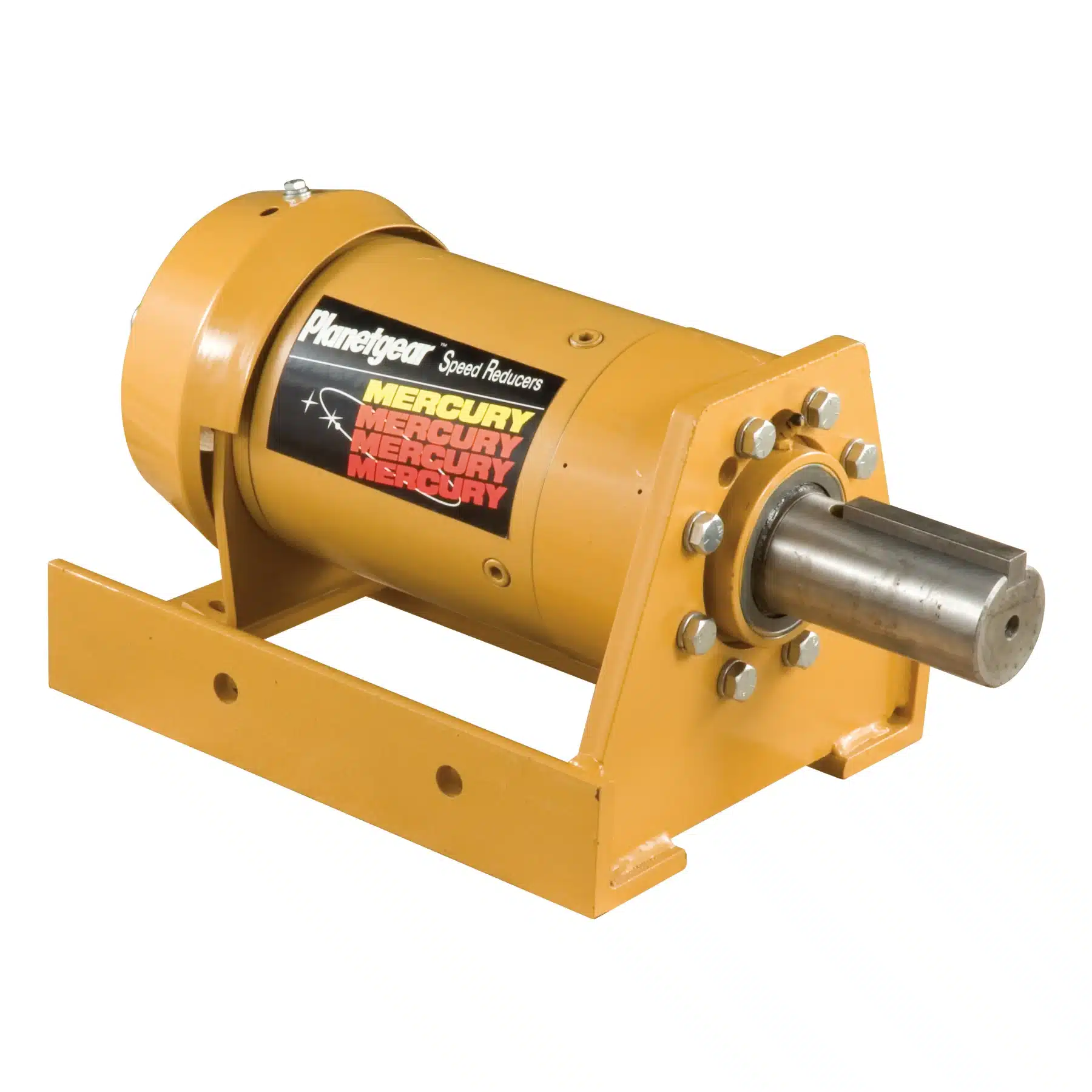

Mercury Gear Drives

Planetgear 7000 Series Mercury Size Drive offers:

• Ratio Range: 3.53 – 1785
• Torque Range: 8,000 – 3,000 inch-pounds
• Mounting Options: Foot-mounted, suitable for both horizontal and vertical orientations
• Standard Accessories:
  • Flanged motor mounts
  • Slidebases
  • Top motor mounts
  • Internal backstops
  • Shaft fans

Neptune Gear Drives

Planetgear 7000 Series Neptune Size Drive offers:

• Ratio Range: 3.53 – 1785
• Torque Range: 160,000 – 75,000 inch-pounds
• Mounting Options: Foot-mounted, suitable for both horizontal and vertical orientations
• Standard Accessories:
  • Flanged motor mounts
  • Slidebases
  • Top motor mounts
  • Internal backstops
  • Shaft fans

Neptune Plus Gear Drives

Planetgear 7000 Series Neptune Plus Size Drive offers:

• Ratio Range: 3.53 – 1785
• Torque Range: 238,000 – 117,000 inch-pounds
• Mounting Options: Foot-mounted, suitable for both horizontal and vertical orientations
• Standard Accessories:
  • Flanged motor mounts
  • Slidebases
  • Top motor mounts
  • Internal backstops
  • Shaft fans

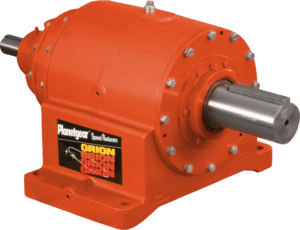

Orion Gear Drives

Planetgear SMP Series Orion Size Drive offers:

• Ratio Range: 11.02 – 1785
• Torque Range: 280,000 – 140,000 inch-pounds
• Mounting Options: Shaft-mounted with hollow low-speed shaft and shrink disk; suitable for both horizontal and vertical orientations
• Standard Motor Mounting Options:
  • Motor flanges
  • Top motor mounts
  • Motor scoops

Orion Plus Gear Drives

Here’s the revised version:

Planetgear 7000 Series Orion Plus Size Drive offers:

• Ratio Range: 3.53 – 1785
• Torque Range: 316,000 – 117,000 inch-pounds
• Mounting Options: Foot-mounted, suitable for both horizontal and vertical orientations
• Standard Accessories:
  • Flanged motor mounts
  • Slidebases
  • Top motor mounts
  • Internal backstops
  • Shaft fans

Saturn Plus Gear Drives

Planetgear 7000 Series Saturn Plus Size Drive offers:

• Ratio Range: 11.02 – 1785
• Torque Range: 450,000 – 250,000 inch-pounds
• Mounting Options: Foot-mounted, suitable for both horizontal and vertical orientations
• Standard Accessories:
  • Flanged motor mounts
  • Slidebases
  • Top motor mounts
  • Internal backstops
  • Shaft fans

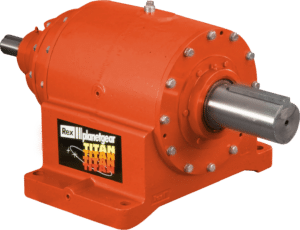

Titan Gear Drives

Planetgear SMP Series Titan Size Drive offers:

• Ratio Range: 11.02 – 1785
• Torque Range: 480,000 – 251,000 inch-pounds
• Mounting Options: Shaft-mounted with hollow low-speed shaft and shrink disk; suitable for both horizontal and vertical orientations
• Standard Motor Mounting Options:
  • Motor flanges
  • Top motor mounts
  • Motor scoops

Titan Plus Gear Drives

Planetgear 7000 Series Titan Plus Size Drive offers:

• Ratio Range: 11.02 – 1785
• Torque Range: 643,000 – 405,000 inch-pounds
• Mounting Options: Foot-mounted, suitable for both horizontal and vertical orientations
• Standard Accessories:
  • Flanged motor mounts
  • Slidebases
  • Top motor mounts
  • Internal backstops
  • Shaft fans

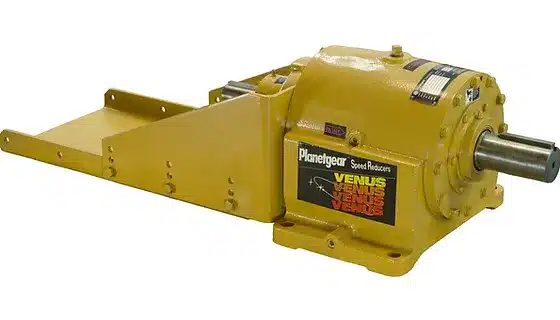

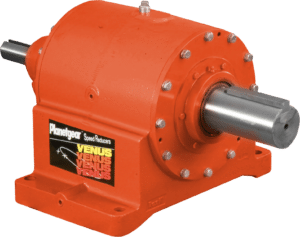

Venus Gear Drives

Planetgear 7000 Series Venus Size Drive offers:

• Ratio Range: 3.53 – 1255
• Torque Range: 24,000 – 17,000 inch-pounds
• Mounting Options: Foot-mounted, suitable for both horizontal and vertical orientations
• Standard Accessories:
  • Flanged motor mounts
  • Slidebases
  • Top motor mounts
  • Internal backstops
  • Shaft fans
